StorMagic ARQvault: The First Active Intelligent Repository

ARQvault is the first Active Intelligent Repository. Gather data anywhere, store it forever, and find it fast. Unique and important features of ARQvault include:

  1. ARQvault is a collection of vaults creating a federated repository. ARQvault software combines different and distributed storage resources into an integrated system shared across the network. Vaults consist of a server, storage, and ARQvault software.
  2. ARQvault is active. Secondary storage, such as LTO tape libraries and Sony optical systems, cloud storage, and even offline storage are all an active part of the repository. ARQvault knows where all the data is and can actively seek, find, and retrieve any data in real time.
  3. ARQvault is intelligent. ARQvault uses policies to automatically move data to different storage tiers and creates low-resolution proxies of high-resolution video, audio, and image files for fast search, playback, and viewing. The use of metadata and customizable fields, and integration with analytics packages, provides for rich data analysis and discovery of new relationships and business assets.

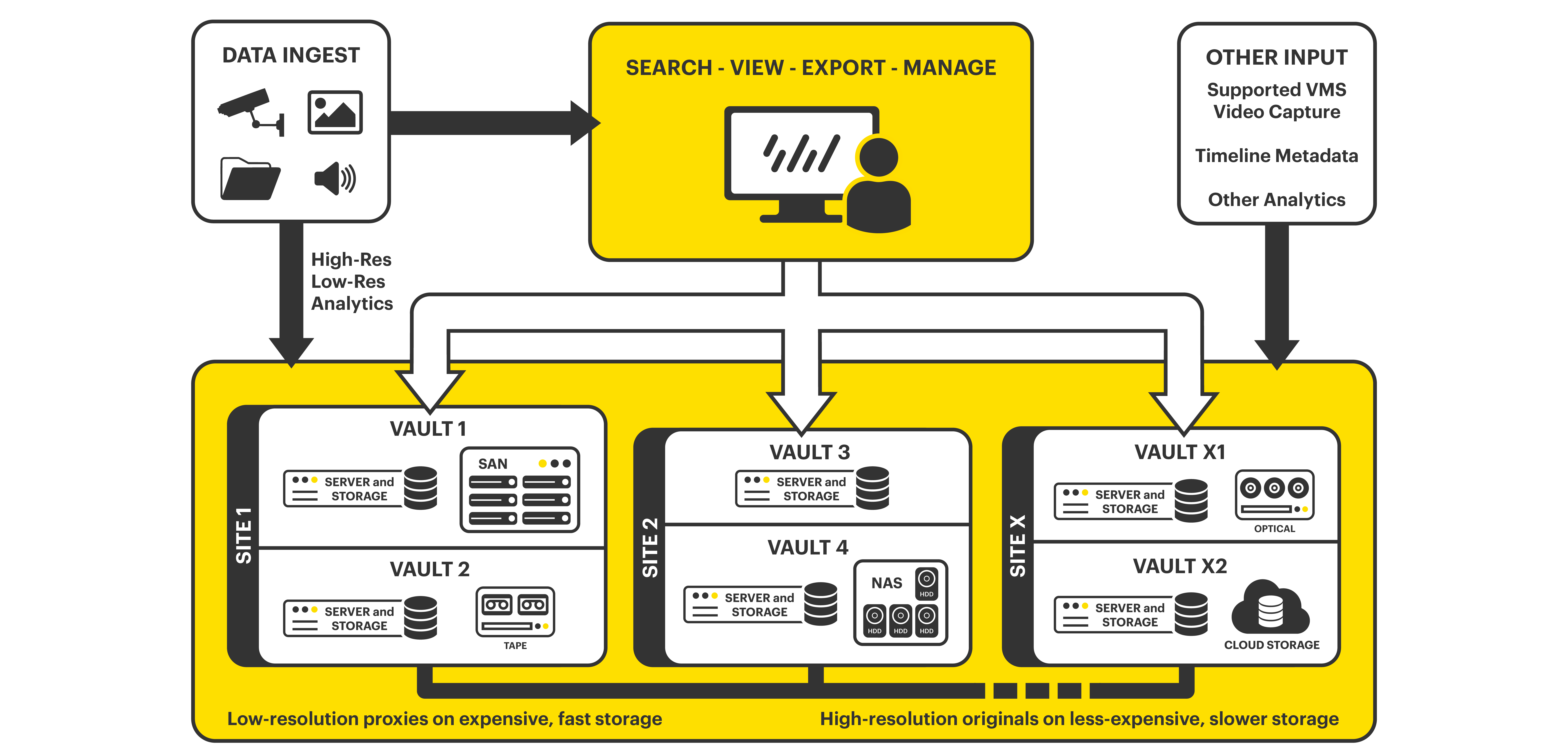

ARQvault Architecture Diagram v5-01

Download the ARQvault data sheet below:

ARQvault Solutions

ARQvault Video Surveillance

ARQvault Video Surveillance solutions consist of ARQvault and either the ARQvault VMS or VMS Connectors module.

  • ARQvault VMS module provides camera configuration, live viewing, video wall, specific third-party analytics integration, such as license plate and facial recognition, and more for a complete, full-featured video surveillance solution.
  • ARQvault VMS Connectors module is for customers that already have a front-end VMS system, such as those from Milestone, Exacq, and Qognify. ARQvault VMS Connectors integrates with these systems and provides all the management, policies, active automated tiering, and intelligent search capabilities, along with dramatically lower storage costs, provided by ARQvault.

ARQvault Digital Evidence Management

ARQvault Digital Evidence Management solutions are intended for law enforcement, transportation and delivery services, warehouses, retail, and commercial environments and consist of ARQvault and one or more of these modules:

  • File Ingest module allows users to ingest any type of file into ARQvault, such as mugshot, fingerprint, 911 audio, images, and other evidentiary files with manual and automatic metadata collection.
  • In-Car module is designed for police, delivery, and transportation organizations to capture and store video from in-vehicle cameras along with GPS data, automatic triggering and meta-tagging.
  • Body Cam module collects video captured from body-worn cameras and automatically downloads video when the device is docked.
  • Interview Room module is used in interview settings, or in any setting where in-room video and audio recording is desired, to easily record, meta-tag and store conversations.

ARQvault Features

GATHER ANYWHERE
Gather data from anywhere using any source, any server and any storage, and expand easily when needed.
Use any digital asset from any source Easily ingest video, images, audio, and other files and data, such as .pdf, .doc, .xls, .txt and more.
No vendor lock-in Runs on x86 or ARM servers and works with any type of storage: internal disk, flash, NAS, SAN, optical, tape, and cloud.
Provides complete architectural flexibility Any site can have one or more vaults. Easy to scale – add additional ingest points to one to thousands of sites in any location at any time.
STORE FOREVER
Store forever (if you want to) with secure, easy to manage, automated tiering. Gain complete control over data lifecycle management and dramatically lower storage costs.
Automated tiering: Optimize performance and reduce costs Use policies to decide what data gets moved to lower cost storage tiers and when. Complete control over where data starts, how long it stays there, and when larger files, such as high-res video, move to more cost-effective tiers.
Three levels of access security At the vault, storage, file levels. Integrates with Active Directory or local authentication with complete audit trail. Makes sure data is unaltered using a digital fingerprint (SHA-256) and provides chain-of-custody history.
Complete data lifecycle management From birth to death. User interface offers managed flexibility in storing data. Easily export and share data: in-house, constituents, or third parties. Simplicity helps meet regulation, compliance, and legal requirements.
FIND FAST
Find data fast and apply powerful search and analytics capabilities with intelligent search using rich metadata.
Intelligent search: Fast results no matter data location or age Numerous search categories: where data stored, file attributes, access level, metadata that has been applied. Parallel search request to all vaults for fastest path to data. Quick results over slow networks using low-res proxies.
Metadata use throughout Applied at ingest, used in tiering decisions, integrates with third-party analytics. Search and data use richer and more robust. Search metadata and content, such as video, audio, documents, and images. Metadata can be applied at file and timeline levels for deep file analytics. Enables advanced reporting and audit capabilities.
Data is always there Distributed architecture with no single point of failure. Store, move, and retrieve data to/from any vault, anywhere. Data resiliency built in. Continues to operate if any component fails: data is always safe and available.

System Requirements

SERVER

Operating System:
  • Windows Server 2008 R2 SP1
  • Windows Server 2012 R2 (64-bit)
  • Windows Server 2016 (64-bit)
  • Windows Server 2019 (64-bit)
  • Windows Server 2022 (64-bit)
Processor Requirements: Intel Xeon E3 3.10 GHz or better
Recording Server: Nvidia graphics card
Hard Drive Requirements: 50 GB of available space to install and run the product. Additional space will be required based on video retention requirements
Memory Requirements: 16 GB or more of RAM
RAID Recommendations: OS RAID 1 (mirrored); Database RAID 1 (mirrored) (should not be on the same drive as the video cache); Data RAID 5 minimum (vault storage drive)

CLIENT

Operating System:
  • Windows 7 Professional SP1 (32-bit and 64-bit)
  • Windows 8 (32-bit and 64-bit)
  • Windows 8.1 (32-bit and 64-bit)
  • Windows 10 (64-bit)
Processor Requirements: Intel Core i5 3.00 GHz or better
Hard Drive Requirements: 10 GB of available space to install and run the product. Additional space will be required based on video retention requirements
Memory Requirements: 8 GB of RAM
RAID Recommendations: OS RAID 1 (mirrored); Database RAID 1 (mirrored) (should not be on the same drive as the video cache); Data RAID 5 minimum (vault storage drive)

OTHER

Linux: Available upon request
Network: Multicast packet routing is required between all server and client machines

VAULT DISK STORAGE

Disk Only: Vault storage is required on all servers. In case of disk-only configurations, sufficient storage must be provided to store all original video for the required retention period
  • Additional disk storage must be provided to store the low-resolution companion files and thumbnails, normally equal to 10% of the total digital data tape storage capacity.
  • Database Disk Storage Database storage requirements vary based on the amount of stored video and the use of metadata.
  • Each server has its own database which correlates to the video it is storing. As a guideline, every 16TB video storage requires 10 GB of disk storage as a minimum for the database
Disk and Digital Data Tape: In a mixed storage environment of disk and digital data tape, sufficient disk storage must be provided to store original video for period which it is required to be stored on disk

Architectural Highlights

Video ingests from 1000s of cameras or other VMS
  • Any ONVIF or RTSP-enabled IP camera, more than 6000 certified cameras, or use with Milestone, Exacq, or Qognify.
Live View and Video Wall
  • Full featured, massively scalable video wall. Highly configurable and customizable. Easy to use.
Consists of 1 to 1000s of vaults at 1 or more sites
  • Vaults consists of server, storage, ARQvault software.
Policy driven automated tiering
  • Determines where video starts, how long it is there, where it goes next.
Low-resolution proxy files created for ingested video
  • Take <10% storage space of original versions.
  • Originals moved to lower cost storage.
  • Provides fast access to video for search, playback, and viewing.
  • High-res versions always available.
Video is active on all storage tiers
  • Optical jukeboxes and tape libraries are active. Video can be retrieved immediately.
Parallel search requests sent to all vaults
  • Finds the fastest path to video.
  • Fast response on slow networks using low-res proxies.
Video is secure, unaltered, always available
  • 3 levels of access security.
  • Digital fingerprint (SHA-256) and chain-of-custody history.
  • No single point of failure.

ARQvault Support

ARQvault Maintenance & Support provides organizations with access to StorMagic support resources, including product updates, knowledgebase access, and email support with our technical support staff. A summary is shown in the table below. More information on ARQvault Maintenance & Support can be found at stormagic.com/company/support.

Hours of operation 24 hours a day1, (7 days a week)
Length of service 1, 3 or 5 years
Product updates Yes
Product upgrades Yes
Access method Email + Telephone (via platinum engagement form on
support.stormagic.com)
Response method Email + Telephone + WebEx
Remote support / WebEx Yes
Maximum number of support administrators per contract 4
Response time 1 hour

1Global, 24x7 support for Severity 1 - Critical Down & Severity 2 Degraded issues
